Pipe Fabrication Tools

Turn Coordinated Model Data into Fabrication-Ready Information

Use the Revit model as the source for pipe fabrication, prefab documentation, installation, and downstream project information.

KLEPON reads the connected pipe system already developed in Revit and turns the relevant model information into structured prefab data. Pipe geometry, dimensions, connections, outlet information, identification, and other fabrication properties remain linked to the model elements they describe.

This means prefab information does not need to be recreated or maintained as a separate dataset outside the model.

Key Result

The model becomes the source for fabrication data.

One model. Fabrication-ready information.

Instead, the fabrication workflow starts directly from the coordinated Revit model and uses the same project information to generate practical pipe data, prefab documentation, and installation-ready outputs.

How It Works

From coordinated model to fabrication-ready delivery.

Coordinated Revit Model
Automated Prefab Identification
Recognise Repeating Items
Generate Fabrication Documentation
Trace Items With QR Data
Update When The Design Changes
Built As Coordinated

Automated Prefab Identification

KLEPON can automatically identify and number prefab items based on project rules, keeping each fabrication item connected to the Revit model and its documentation.

This removes large amounts of manual tagging and helps maintain consistent identification across large projects.

Key Result

Less manual work. More consistent fabrication data.

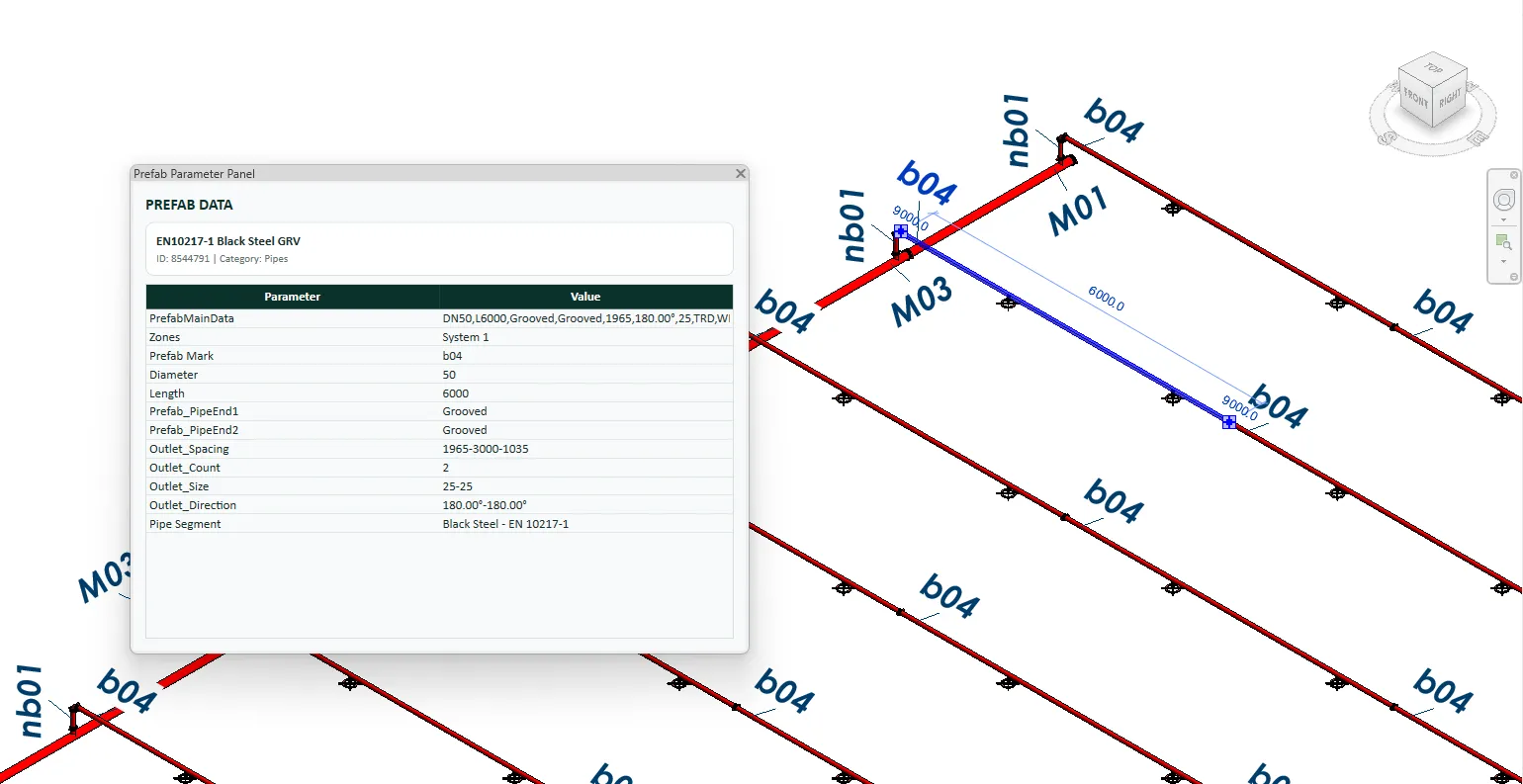

Prefab Parameter Panel showing structured prefab data — mark, diameter, length, and outlet spacing — linked to a pipe element in the Revit model

Find Repeating Fabrication Items

Large fire protection systems often contain repeated pipe configurations.

By comparing fabrication properties such as pipe length, diameter, connections, and outlet configuration, KLEPON can identify typical or repeating prefab items.

This helps reduce unnecessary variation and makes it easier to manufacture identical items multiple times.

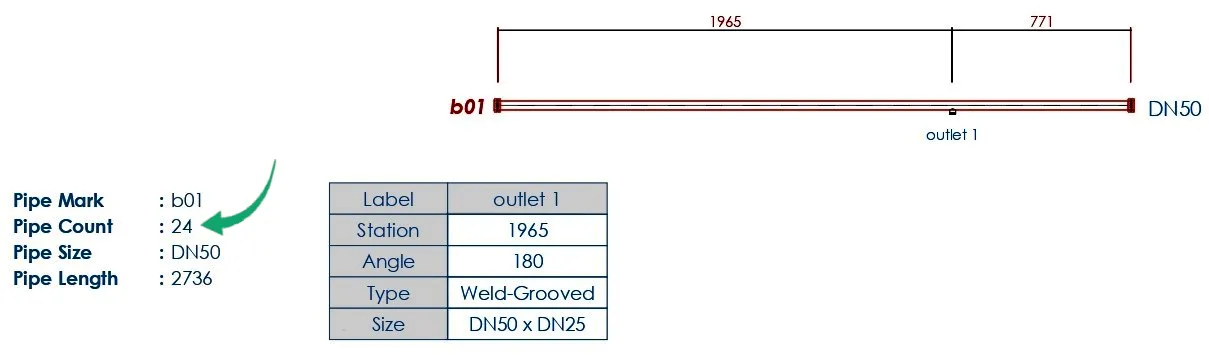

Repeating prefab pipe item (mark b01) with pipe count, size, and length, plus outlet station, angle, and type data

Generate Prefab Documentation

The same structured model data used for prefabrication can also become the basis for material planning, procurement, and production information.

KLEPON can turn model quantities and fabrication properties into organised summaries using information such as pipe size, type, length, fittings, connections, outlets, quantities, zones, and other mapped project parameters.

This structured model data can be converted into practical fabrication outputs such as prefab pipe sheets, isometric information, pipe identification, prefab marks and cut information.

3D ISO prefab pipe view, pipe identification and prefab marks, prefab pipe list tables, and a prefab part drawing generated directly from the coordinated Revit model

So now, instead of manually assembling fabrication sheets from disconnected information, KLEPON uses the coordinated model as the foundation for the fabrication and procurement output.

QR code generated for a prefab pipe item, linking the physical part back to its Revit model data and documentation

QR Codes and Traceable Prefab Information

QR codes can connect physical prefab items back to their digital project information, including prefab marks, zones, pipe data, documentation, and revision information.

Key Result

This creates a traceable connection from model → fabrication → site.

Handle Revisions Without Rebuilding Everything

Coordination changes. Routing changes. Connections and outlet positions change.

Because the prefab information remains linked to the model, updated fabrication outputs can be regenerated from the latest coordinated design instead of being recreated manually.

Key Result

The model changes. The data follows.

Designed for Model-to-Site Accuracy

The goal is to keep what is fabricated and installed aligned with what has been coordinated.

Geometry, connections, dimensions, and outlet information come from the same model used during coordination, reducing the need to reinterpret the design downstream.

Key Result

Model once. Use the data throughout delivery.

  1. 1Model
  2. 2Structured Data
  3. 3Prefabricate
  4. 4Quantify
  5. 5Procure
  6. 6Deliver
